Back to catalogue

★ Featured in Atlantis

Illumagic

2 × Mini X

Name: Illumagic 2 × Mini X
Brand: Illumagic

Primary lighting

Lighting · LED Fixtures

Primary reef lighting across the 36" footprint.

Channels

14 (true independent — not paired)

Total LEDs

84 Cree XP-G3 + Osram OSLON

Power draw

120 W max, ~85 W typical reef program

PAR @ 30cm

~450 µmol/m²/s @ 70% white

PAR @ 50cm

~200 µmol/m²/s @ 70% white

See it in the Atlantis tank build →

2 × Mini X

at Illumagic

Buy →

Summary

Compact Hyperspectral LED puck designed for nano-to-medium reef tanks where rectangular fixtures look out of place. Genuine 14-channel control (most 'reef LEDs' fake this with 4 channels split), and the puck profile means it disappears above a rimless build. Atlantis runs a pair over the show tank where space above the water line is the constraint.

Best for60-180 L nano + medium rimless tanks; supplementary lighting on larger builds Mountrigid arm or pendant Skill intermediate

Tank-size fit (log scale)

50L 100L 200L 400L 800L 1500L

Best-fit range: 60-180 L

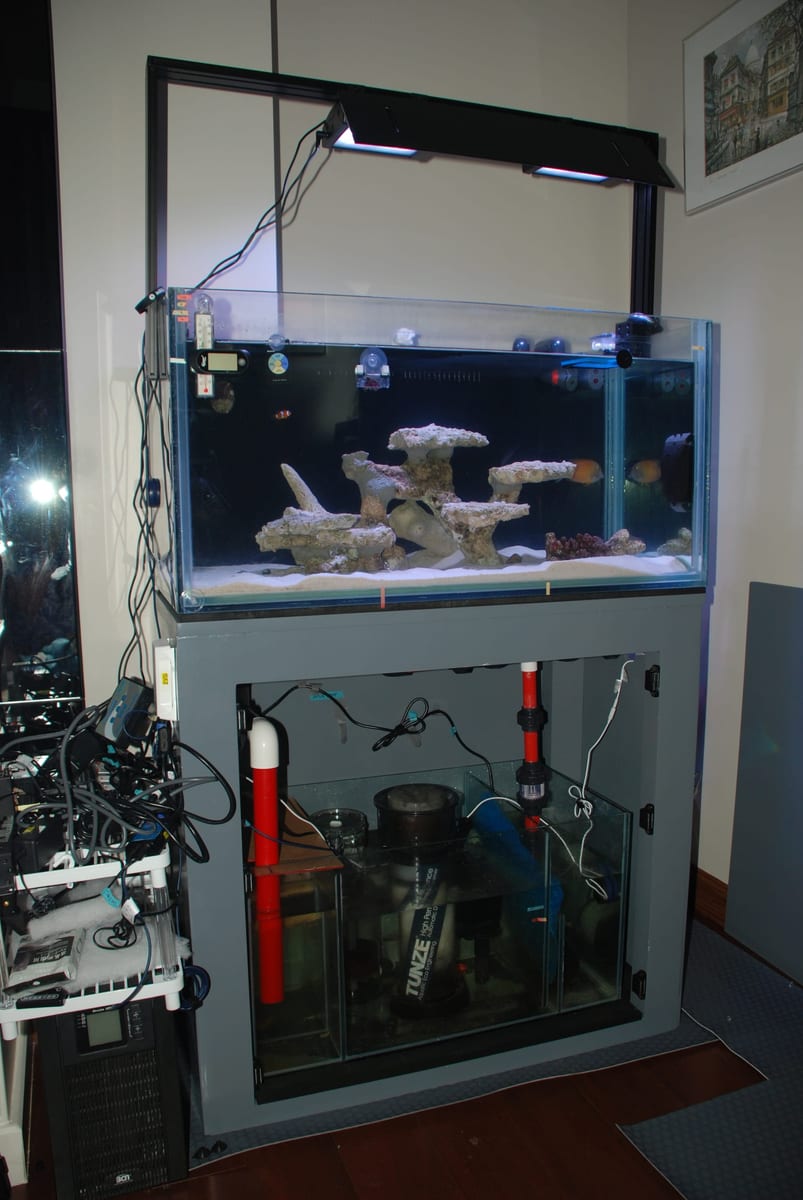

★ Atlantis verdict

"Two pucks above the Atlantis show tank since 2026-02. Coral colour pops harder than our previous Radion Gen 6 setup, and the silent fanless design matters because the tank is 1.5m from the TV. PAR distribution on a 60×40cm footprint is excellent — corners get within 15% of centre."

See it in the Atlantis tank build →

Light spread (PAR cone)

PAR readings in µmol/m²/s at typical white-channel program · spread cone illustrative

Full specifications

Channels 14 (true independent — not paired)

Total LEDs 84 Cree XP-G3 + Osram OSLON

Power draw 120 W max, ~85 W typical reef program

PAR @ 30cm ~450 µmol/m²/s @ 70% white

PAR @ 50cm ~200 µmol/m²/s @ 70% white

Spread 60 × 60 cm @ 30cm height, 80 × 80cm @ 50cm

Cooling Passive (fanless) — silent

Dimensions 220 × 220 × 45 mm

Weight 1.4 kg

Control Illumagic app (iOS/Android) + Bluetooth

Warranty 3 years

What sells it / What holds it back

✓ Pros

✓ Silent — no fan whine for media rooms or living-room tanks

✓ 14 independent channels = real spectrum sculpting, not gimmick presets

✓ Compact puck profile disappears above a rimless build

✓ PAR holds up to 50cm depth — works for 60cm-tall tanks

✓ Cree + Osram diodes; not the no-name LEDs in cheaper pucks

✗ Cons

✗ App is Bluetooth-only (no cloud / no remote dimming away from home)

✗ No built-in lunar / cloud-cover simulation — schedule is straight ramps

✗ Premium price vs. Chinese 14-channel clones

✗ Mounting arm sold separately (illumagic-mount)

✗ Heat sink runs warm — keep ≥10cm clearance above

What's in the box

Illumagic Mini X puck
120V/240V universal power brick
AC power cable
Quick-start guide
Suction-cup glass mount (lightweight only — get the rigid mount for permanent installs)

Setup & dial-in

Out of the box: do NOT run at 100%. New corals bleach.

Week 1: cap whites at 30%, blues at 50% — let coral acclimate.

Week 2-4: ramp whites by 10% per week to your target (typically 60-70% for mixed reef, 80%+ for SPS-dominant).

Use the Illumagic app's PAR estimator — you want 150-300 µmol at coral height for mixed reef, 350+ for SPS.

Schedule: 12-hour cycle is standard. Sunrise/sunset ramp = 60 min each. Peak window 4-6 hours.

If you see brown algae bloom after install: cut blue channels by 15%, not whites.

Maintenance schedule

weekly

Wipe puck face (salt creep)

monthly

Check heat sink fins for dust

monthly

Verify schedule + firmware update

every 6 months

PAR re-measure at coral height

annually

Lens cleaning (deep clean)

Pairs with / Replaces

Pairs with

Illumagic

36" Mounting Stance

Illumagic

Light Shade / Glare Shield

Featured in famous tanks

This piece of gear is in the documented build of 1 tank tour.

★ 60 gal

Project Atlantis

Atlantis Reef Keeping

LPS dominated

Where to buy

Affiliate disclosure. Some links on this page are affiliate links — we may earn a commission when you buy through them, at no extra cost to you. As an Amazon Associate we earn from qualifying purchases. Prices and stock are refreshed nightly from each retailer.

Retailer	Price	Stock	Checked
Illumagic illumagic.tech	See site	In stock	5d ago	Buy →

Side-by-side compare

	This product Illumagic 2 × Mini X See site	EcoTech Marine Radion XR Series See site	Orphek Atlantik Series See site
Channels	14 (true independent — not paired)	5 (Blue) or 7 (Pro) HD LEDs	—
Total LEDs	84 Cree XP-G3 + Osram OSLON	—	—
Power draw	120 W max, ~85 W typical reef program	—	—
PAR @ 30cm	~450 µmol/m²/s @ 70% white	430-890 µmol/m²/s @ 70% white	—
PAR @ 50cm	~200 µmol/m²/s @ 70% white	—	—
Spread	60 × 60 cm @ 30cm height, 80 × 80cm @ 50cm	24×24 to 36×36 in @ 18 in height	—
